Gigabit Switch (µMAGBES)

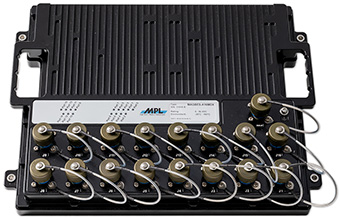

Rugged managed Gbit Switch with 16 ports

built in robust IP67 housing (µMAGBES-A16MDX)

The µMAGBES-A16MXD is a 16-port manageable Gigabit Ethernet 4th generation switch from MPL. The robust design, low power consumption, and the various mechanical configurations make the switch ideally suited for any application that needs a rugged and reliable solution.

Besides the long-term availability, manageable features like Quality of Service, Port Based VLAN, and IEEE 802.1Q VLAN, just to mention a few, are available. The µMAGBES also supports Rapid Spanning Tree IEEE 802.1D 2004 and allows to use redundant Ethernet connections without introducing network loops. Unique is the fact, that it supports 1588 PTP as part of the standard Firmware.

The µMAGBES-A16MXD solution is equipped with D38999 connectors of your choice. All ports have optional status LEDs, indicating the activity and speed of each port, including reset and default setting. Supply power is 24VDC (other voltages possible) and 16 ports use less than 9W. The solution can be operated at -20°C to 60°C and optionally even in extended temperature -40°C to 85°C.

µMAGBES Highlights

These features make the µMAGBES ideally suited for any rugged defense network application with long life cycle requirements. Due to the extreme low power consumption and the robust and flexible design, the µMAGBES is well suited for tough environments.

[µMAGBES managed Gigabit switch]

µMAGBES in rugged MIL housing

[µMAGBES managed Gigabit switch]

µMAGBES-A8MDX in rugged IP67 housing

[µMAGBES managed Gigabit switch]

µMAGBES-A16MDX in robust IP67 housing


Technical Features

Board Key Data
Switch lookup Engine Supports up to 1024 MAC entries with automatic learning and aging
Supports auto crossover (Auto MDI/MDIX) and polarity correction
Jumbo Frame support up to 10k Byte
Status LED 2 LEDs for each copper port (Link/Activity and Speed indicators)
Interfaces
Copper Ports 16 x 1Gbit LAN ports
Over MIL connectors 16 x LAN over TVP00RW-9-9S
I/O Interfaces 1 x power over D38999/20WA98PA
Management Software
MPL developed and maintains a management SW with easy to use web interface.
Management supports: • Port Based VLAN • IEEE 802.1Q VLAN
(Layer 2 Management) • Quality of Service • IEEE 802.1X MAC Address Checking
  • IEEE 802.1D RSTP support • Port monitoring
  • SNMP V1, V2c, V3 support • Firmware Update via HTTP or TFTP
  • IGMPv3 snooping • TLS (HTTPS)
  • Trunking • Spanning tree
    • gPTP (1588 PTP support)
Power
Input voltage 24 DC Input ( any other supply voltage is possible)
Power consumption Typically 9W
Mechanical
Dimension / Weight 330mm (W) x 250mm (H) x 50mm (D) / <5 Kg
Material Aluminum HE30
Color Powder coated (RAL9005 or any other RAL color)
Environment
Operating Temperature -20°C to +60°C (-4°F to +140°F) at full operation
Extended Temperature Optional -40°C to +85°C (-40°F to +185°F) at full operation
Storage Temperature -45°C up to +85°C (-49°F to +185°F)
Relative Humidity 5% to 95% none condensing @ 45°C
Vibration 5-20Hz, 6dB/octave,
20-50Hz: 0.02g2/Hz & then rolling up to 0.001 g2/Hz at 50 to 500 Hz
Corrosion/Mould Growth As per JSS55555
EMI/EMC As per MIL-STD-461E / CE102, CS101, CS114, CS116, RE102, RS103, CS115 & HESD
Standard Compliance
The µMAGBES is designed to meet or even exceed the most common standard, particular references are:
EMC EN 55022, EN 55024, EN 61000, MIL-STD-461E
Shock & Vibration EN 60068
Environmental & Safety EN 50155, MIL-STD-810-F, EN 60601, EN 60950
Approval List CE, IEC 60945, IACS E10


[µMAGBES Versions]
