MPL provides standard Industrial / Defense / Railways proven rugged housing. Regardless of your application, you can chose between DIN-Rail, Flange, or 19" mounting. Also Open Frame and IP67/MIL housings are in the standard program.

Various heights are offered to create the most compact system according to your I/O requirements. Semi-customized and customized housings based on your needs and applications can be supplied, even with your logo and color.

PIP housing combo

Standard HousingMIL HousingOpen Frame Housing19inch Housing


Use MPL's standard industrial proven, rugged housing, either with DIN-rail, or flange mount option. Various heights are offered to create the most compact system according to your I/O requirements. OEM versions are readily available with customer logo and colors.


Standard PIP Housings with DIN-rail mounting mechanical drawing

Reference (270x162mm footprint)

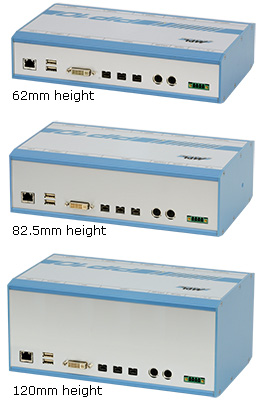

PIP62-1 62mm housing allowing to install 1 PC/104 or PC/104-Plus in addition to HDD/SSD or Flash
PIP83-1 82.5mm housing allowing to install up to 2 PC/104 or PC/104-Plus in addition to HDD/SSD or Flash
PIP120-1 120mm housing allowing to install up to 4 PC/104 & PC/104-Plus in addition to HDD/SSD or Flash


Standard PIP Housings with Flange mounting mechanical drawing

Reference (310x162mm footprint)
PIP62-2 62mm housing allowing to install 1 PC/104 or PC/104-Plus in addition to HDD/SSD or Flash
PIP83-2 82.5mm housing allowing to install up to 2 PC/104 or PC/104-Plus in addition to HDD/SSD or Flash
PIP120-2 120mm housing allowing to install up to 4 PC/104 & PC/104-Plus in addition to HDD/SSD or Flash


Available colors, OEM PIP colors, OEM PIP foil

Reference Description
COLOR-5024 RAL5024 (MPL blue) 62mm, 82.5 mm and 120mm height
COLOR-7016 RAL7016 (anthracite gray) 62mm, 82.5mm and 120mm height
COLOR-3020 RAL3020 (traffic red) 62mm, 82.5mm and 120mm height
COLOR-xxxx Customer specific RAL color - additional cost for each PIP
OEMFOIL-Cx Customer specific top foil according customers artwork


Different colors options
