Rugged Gigabit Ethernet Controller

TRIGET

The TRIGET-Family consists of highly integrated, flexible, and robust PC/104-Plus compliant Ethernet modules for industrial use. With a single PC/104-Plus module a system can be expanded with up to three Gigabit Ethernet controllers! Through the use of a PCI to PCI bridge the TRIGET requires only one slot on a PC/104-plus stack. Therefore the stack still can be expanded by up to 3 other PC/104-Plus cards.

Rugged Gigabit Ethernet Controller (TRIGET)

To match the different system requirements, different interfaces and mechanical versions are offered. Chose between RJ45 or 2mm lockable headers as well as two mechanical sizes.

The TRIGET works on 5V and 3.3V PCI host boards. Further it supports up to 66MHz PCI operation.

TRIGET Specialities

These features make the TRIGET ideally suited for network applications that require many independent high-speed interfaces. Through the robust and flexible design the products can be well used in any embedded system.


Technical Features

Board Key Data
Network Controller Intel 82541PI up to three controllers onboard
Physical Interface RJ45 or 10-pin 2mm lockable header supports auto crossover (Auto MDI/MDIX)
Status LEDs 2 LEDs for each port Link/Activity and Speed
Host Interface

PC/104-Plus compliant
PCI specification revision 2.3 compliant
stackthrough module, up to 66MHz
supports both 5.0V and 3.3V signaling

Physical/Power
Size (length x width x height) 92.4 x 95.9 x 11.1 mm
90.7 x 95.9 x 13.9 mm
122.2 x 95.9 x 13.9 mm
2mm header version (-xH)
RJ45 version (-xS)
PIP built-in version (-xM)
Weight Typically 120g / 0.26 lbs fully equipped TRIGET-3S
Power +5 VDC ± 5% input over PCI connector
Power consumption Typically 4W with 3x Gigabit links
Temperature range -20°C up to 60°C optional -40°C up to +85°C
Humidity 5% - 95% non condensing optional coating available

Operating Systems
Compatible with the existing Intel 82541 PI driver software!
  • Microsoft Windows Server 2003 / 2008
  • Microsoft Windows XP Professional
  • Microsoft Windows Vista
  • DOS
  • Linux

TRIGET Versions

Reference Function
TRIGET-3S 3 Gigabit Ethernet controller on standard PC/104-Plus module, interfaces RJ45 connectors.
TRIGET-2S 2 Gigabit Ethernet controller on standard PC/104-Plus module, interfaces RJ45 connectors.

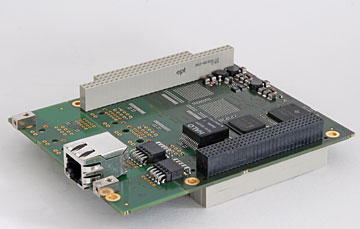

TRIGET-1S 1 Gigabit Ethernet controller on standard PC/104-Plus module, interface RJ45 connector.
TRIGET-3H 3 Gigabit Ethernet controller on standard PC/104-Plus module, interfaces 2mm lockable headers.
TRIGET-2H 2 Gigabit Ethernet controller on standard PC/104-Plus module, interfaces 2mm lockable headers.
TRIGET-1H 1 Gigabit Ethernet controller on standard PC/104-Plus module, interface 2mm lockable header.
TRIGET-3M 3 Gigabit Ethernet controller on PIP built-in PC/104-Plus module, interfaces RJ45 connectors (available on PIP front)
TRIGET-2M 2 Gigabit Ethernet controller on PIP built-in PC/104-Plus module, interfaces RJ45 connectors (available on PIP front)
TRIGET-1M 1 Gigabit Ethernet controller on PIP built-in PC/104-Plus module, interface RJ45 connector (available on PIP front)
TRIGET-3HKIT Cable and connector kit for TRIGET-3H.
Small PCB with 3 Ethernet interfaces over RJ45 connectors (cable length 300mm).
TRIGET-1HKIT1 Cable and RJ45 adapter PCB for TRIGET-xH (cable length 300mm) - no status LEDs.
TRIGET-1HKIT2 Ethernet cable 300mm long, 10 pin 2mm lockable socket to RJ45 connector.
TRIGET-Cx Custom specific version with 1-3 Gigabit Ethernet controller and required Ethernet interfaces.
Please talk to us.

Please note, not always all versions are available from stock.


Extended Temperature Option

Reference Description
XTEST-1 Extended temperature test, -40°C up to +85°C

For deployment in harsh environments, the TRIGET can be ordered in an extended temperature version. Every system needs to pass various tests in a climate chamber to prove that it will perform flawless over the temperature range indicated.
