PC/104-Plus Ethernet-Switch Module with up to 8 Ports

PC/104-Plus Ethernet-Switch Module (SpiderLan Family)

SPIDERLAN

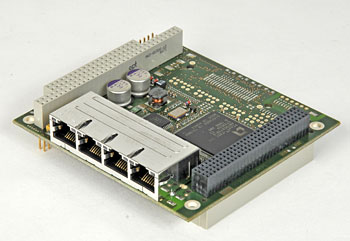

The SPIDERLAN-Family consists of universal high performance, compact and robust Ethernet Switch modules for industrial use. With a single PC/104-Plus module, your system can be expanded with up to 2 Ethernet controllers, each combined with a 5 port Ethernet switch. So the board comes with up to eight fully independent operating external 10/100BASE-TX ports, available on RJ45 connectors. Each switch automatically determines and remembers where an Ethernet device is located and routes packets only to the appropriate port. This minimizes network load, eliminates collisions and enables true deterministic communications over Ethernet. The SPIDERLAN is available as compact single PC/104-Plus module or as expandable version for front panel assemblies!

SPIDERLAN Specialties


Technical Features

Electrical
Ethernet Switch 5-port Layer 2 Switch Controller
1.4 Gbps high performance bandwidth
Independent operation
up to two switch controllers
each with 128KB SRAM
automatic address learning, aging and migration
Network Controller PCnetTM-FAST III Ethernet Controller
Each direct connected to one switch
up to two Ethernet controllers
Physical Interface (PHY) 10BASE-T and 100BASE-TX onboard or on external PCB
Supports IEEE 802.3u auto negotiation
up to 8 external RJ45 connectors
10/100Mbps, half/full-duplex operation
Media Independent Interface (MII) Used to connect Ethernet and Switch controller together expanded version uses 1:1 cable
cable length 25 cm
Status LED's 2 LED s for each channel user configurable
Ethernet Host Interface PC/104-Plus compliant
PCI specification revision 2.2 compliant
stack through module
supports both 5.0V and 3.3V signaling
Power Runs with 5V input power only 5V/3.3V converter onboard

Physical/Power
Size (length x width x height) 90.2 x 95.9 x 11 mm
3,550 x 3,775 x 0,435 inch
PC/104-Plus compliant
stack through module
Weight 120g / 0.265 lbs fully equipped SPIDERLAN-2P
Power +5VDC +/-5% input over PCI connector
Power consumption Typically 2.5W
Typically 5W
SPIDERLAN-1P/E (4-port switch)
SPIDERLAN-2P/E (8-port switch)
Temperature Range -20°C up to 70°C optional -40°C up to 75°C
Humidity 5% - 95% non condensing optional coating available

Operating Systems
Compatible with the existing PCnet Family driver and diagnostic software!
  • Microsoft Windows NT 3.51, 4.0, 2000
  • Microsoft Windows 95, 98, ME, XP
  • Microsoft Windows CE
  • Novel NetWare 3.11, 3.12 & 4.1x, 5 Server
  • Packet driver for Unix Client, UnixWare 7.0, SCO Unix
  • Linux (Red Hat, Caldera, SlackWare, S.U.S.E and Debian)
  • Macintosh Mac OS 8.x/9.x

SPIDERLAN Versions

Reference Number of Ethernet and Switch controller RJ45 Ports on PC/104-Plus Board RJ45 Ports on Expansion Board
SPIDERLAN-1P 1 4 (on one switch) -
SPIDERLAN-1E 1 - 4 (on one switch)
SPIDERLAN-2P 2 8 (two switches) -
SPIDERLAN-2E 2 - 8 (two switches)

Please note, not always all versions are available from stock.

For further customer specific versions, please contact MPL. In addition to the SPIDERLAN Family, MPL provides a LAN104 product line with industrial single and dual PC/104-Plus Ethernet modules with either RJ45, 2.54 mm header, or MII interface.


Extended Temperature Option

Reference Description
XTEST-1 Extended temperature test, -40°C up to +85°C

For deployment in harsh environments, the SPIDERLAN can be ordered in an extended temperature version. Every system needs to pass various tests in a climate chamber to prove that it will perform flawless over the temperature range indicated.
